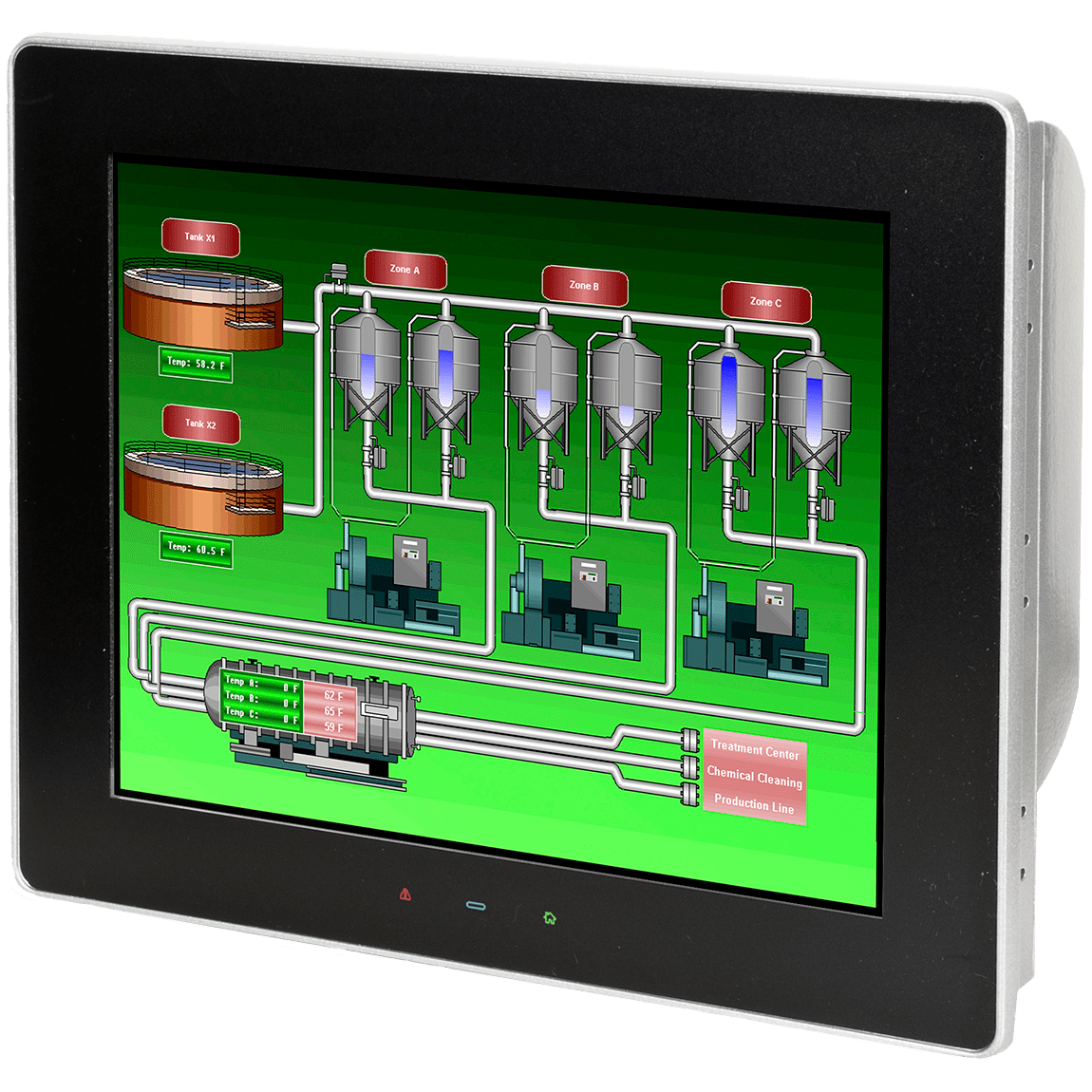

Graphite Rugged Indoor 10″ High-Resolution HMI

Description

All-aluminium construction featuring a high-resolution HMI panel for demanding indoor industrial environments.

The Graphite Rugged Indoor 10” High-Resolution model is a Red Lion HMI designed to connect, monitor and control industrial processes through a touchscreen interface. It combines high-resolution visualisation with protocol conversion, data logging, web-based monitoring and IEC 61131 control, making it suitable for machine builders, system integrators and manufacturers that need more than a standard operator panel.

Graphite Red Lion HMI Connectivity and Expansion

This model includes one Ethernet port, two RS-232 ports, one RS-422/485 port, one USB device port, two USB host ports and an SD card slot for data logging. HMS states that the Graphite platform can convert up to 20 protocols at once from a library of more than 300 industrial drivers. Expansion racks and plug-in modules can also be added, helping engineering teams extend I/O and functionality without replacing the whole panel.

Rugged Indoor HMI for Demanding Environments

The Graphite range is built with a cast-aluminium housing and is rated for operation from -20°C to 60°C. The official specification for this model also lists IP66 protection, shock and vibration tolerance, and approvals including CE, UL, cUL, ATEX, ABS, RoHS and UKCA. For businesses that need a reliable Red Lion HMI in demanding indoor settings, this supports long-term performance as well as easier access to monitoring, control and network visibility.
